Snap Point/Line

Inserts a snap point or snap line (also known as guide) that you can use to quickly align objects. Snap points and snap lines do not appear in printed output.

بۇ بۇيرۇقنى زىيارەت قىل…

Choose Insert - Insert Snap Point/Line (LibreOffice Draw only).

تىل مۇھىت تىزىملىكىنى ئېچىپ كوئوردىنات نۇقتىسى/سىزىق قىستۇرنى تاللاڭ


tip

You can drag a snap line from the rulers and drop them on the page. To delete a snap line, drag it back to the ruler.


Draw or move an object near a snap point or snap line to snap it in place.

To set the snap range, choose in the Options dialog box.

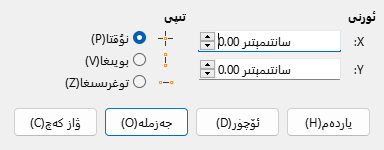

Snap Object Dialog

ئورنى

Sets the position of a selected snap point or line relative to the top left corner of the page.

note

You can also drag a snap point or snap line to a new position.


Y ئوقى

Enter the amount of space you want between the snap point or line and the left edge of the page.

Y ئوقى

Enter the amount of space you want between the snap point or line and the top edge of the page.

تىپى

Specified the type of snap object you want to insert.

نۇقتا

Inserts a snap point.

بويىغا

Inserts a vertical snap line.

توغرىسىغا

Inserts a horizontal snap line.
