Duplicate

Makes one or more copies of a selected object.

Барои ин фармонро дастрас кардан...

Choose Edit - Duplicate.

Shift+F3

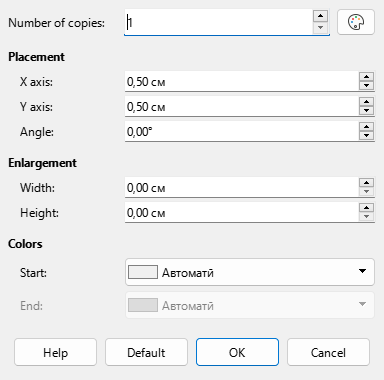

Duplicate dialog

Дубликат кардани объектҳо

Шумораи нусхаҳо

Enter the number of copies you want to make.

Values from selection

Icon Values

Enters the width and the height values of the selected object in the X axis and the Y axis boxes respectively as well as the fill color of the object in the Start box. The rotation angle of the selected object is not entered.

Якшавӣ

Sets the position and rotation of a duplicate object with respect to the selected object.

Меҳвари X

Enter the horizontal distance between the centers of the selected object and the duplicate object. Positive values shift the duplicate object to the right and negative values shift the duplicate object to the left.

Меҳвари Y

Enter the vertical distance between the centers of the selected object and the duplicate object. Positive values shift the duplicate object down and negative values shift the duplicate object up.

Кунҷ

Enter the angle (0 to 359 degrees) by which you want to rotate the duplicate object. Positive values rotate the duplicate object in a clockwise direction and negative values in a counterclockwise direction.

Васеъшавӣ

Sets the size of a duplicate object.

Бар

Enter the amount by which you want to enlarge or reduce the width of the duplicate object.

Баландӣ

Enter the amount by which you want to enlarge or reduce the height of the duplicate object.

Рангҳо

Sets the colors for the selected object and the duplicate object. If you make more than one copy, these colors define the start and end points of a color gradient.

Оғозкунӣ

Choose a color for the selected object.

Охир

Choose a color for the duplicate object. If you are making more than one copy, this color is applied to the last copy.

Стандарт

Resets the values visible in the dialog back to the default installation values.

warning

Пурсиши тасдиқот пеш аз барқароркунии қиматҳои аслӣ пайдо намешавад.
