Spacing

Use this dialog to determine the spacing between formula elements. The spacing is specified as a percentage in relation to the base size defined under Format - Font Size.

இக்கட்டளையை அணுக...

வடிவூட்டு - இடைவெளியிடுதல் ஐத் தேர்ந்தெடு

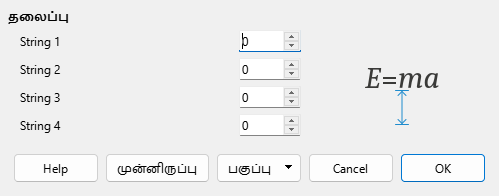

Spacing Dialog

Use the Category button to determine the formula element for which you would like to specify the spacing. The appearance of the dialog depends on the selected category. A preview window shows you which spacing is modified through the respective boxes.

Category

நீங்கள் இடைவெளி மாற்ற விரும்பினால், இந்தப் பொத்தான் அதற்கான பகுப்பைத் தேர உங்களை அனுமதிக்கிறது.

Spacing

Defines the spacing between variables and operators, between lines, and between root signs and radicals.

Spacing

Defines the spacing between variables and operators.

Line Spacing

Determines the spacing between lines.

Root Spacing

Determines the spacing between the root sign and radicals.

அகவரிசைகள்

Defines the spacing for superscript and subscript indexes.

Superscript

Determines the spacing for superscript indexes.

Subscript

Determines the spacing for subscript indexes.

Fractions

Defines the spacing between the fraction bar and the numerator or denominator.

Numerator

Determines the spacing between the fraction bar and the numerator.

Denominator

Determines the spacing between the fraction bar and the denominator.

Fraction Bars

Defines the excess length and line weight of the fraction bar.

Excess length

Determines the excess length of the fraction line.

எடை

Determines the weight of the fraction line.

Limits

Defines the spacing between the sum symbol and the limit conditions.

Upper limit

Determines the spacing between the sum symbol and the upper limit.

Lower limit

Determines the spacing between the sum symbol and the lower limit.

Brackets

Defines the spacing between brackets and the content.

Excess size (left/right)

Determines the vertical distance between the upper edge of the contents and the upper end of the brackets.

Spacing

Determines the horizontal distance between the contents and the upper end of the brackets.

Scale all brackets

அனைத்து வகை அடைப்புகளையும் ஒப்பளவிடுகிறது. நீங்கள் பிறகு கட்டளைகள் சாளரத்தில் ( a மீது b) ஐ உள்ளிட்டால், அடைப்புகள் ஒட்டுமொத்த வாதத்தையும் சூழும். நீங்கள் இயல்பாகவே இந்த விளைவை இடது ( a மீது b வலது) ஐ உள்ளிடுவதினால் அடைவீர்கள்.

Excess size

Adjusts the percentage excess size. At 0 percent the brackets are set so that they surround the argument at the same height. The higher the entered value is, the larger the vertical gap between the contents of the brackets and the external border of the brackets. The field can only be used in combination with Scale all brackets.

Matrices

Defines the relative spacing for the elements in a matrix.

Line spacing

Determines the spacing between matrix elements in a row.

Column spacing

Determines the spacing between matrix elements in a column.

Symbols

Defines the spacing of symbols in relation to variables

Primary height

Defines the height of the symbols in relation to the baseline.

Minimum spacing

Determines the minimum distance between a symbol and variable.

Operators

Defines the spacing between operators and variables or numbers.

Excess size

Determines the height from the variable to the operator's upper edge.

Spacing

Determines the horizontal distance between operators and variables.

Borders

Adds a border to your formula. This option is particularly useful if you want to integrate the formula into a text file in LibreOffice Writer. When making settings, be sure that you do not use 0 as a size, since this creates viewing problems for text that surrounds the insertion point.

Left

The left border is positioned between the formula and background.

Right

The right border is positioned between the formula and background.

Top

The top border is positioned between the formula and background.

Bottom

The bottom border is positioned between the formula and background.

முன்னோட்டப் புலம்

Displays a preview of the current selection.

Default

நீங்கள் ஏறப்டுத்திய மாற்றங்களை அனைத்துப் புதிய சூத்திரங்களுக்கும் முன்னிருப்பு அமைவுகளாகச் சேமிக்கிறது.ஒரு பாதுகாப்பு பதிலளிப்பு இந்த மாற்றங்களைச் சேமிக்கும் முன் தோன்றும்.

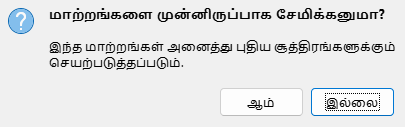

Save Default Dialog
