To Polygon

Converts the selected object to a polygon (a closed object bounded by straight lines). The appearance of the object does not change. If you want, you can right-click and choose Edit Points to view the changes.

To access this command...

Choose Shape - Convert - To Polygon (LibreOffice Draw only)

Open the context menu of a selected object and choose Convert - To Polygon

Converting Bitmap Images into Vector Graphics

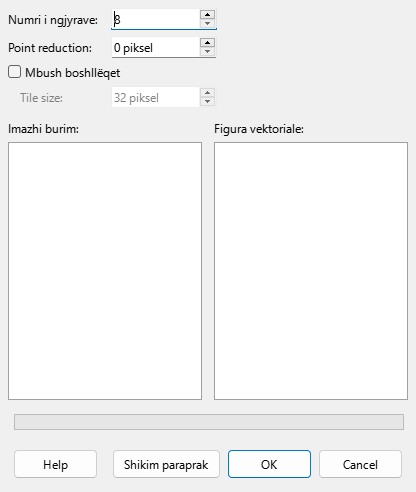

To Polygon dialog

Convert to Polygon

The following options are required to convert a bitmap image to a polygon. The converted image is actually a collection of smaller polygons filled with color.

Parametrat

Set the conversion options for the image.

Ngjyrat sipas dëshirës

Enter the number of colors to be displayed in the converted image. LibreOffice generates a polygon for each occurrence of a color in the image.

Shëni pikën

Removes color polygons that are smaller than the pixel value you enter.

Hijezo mbushjen

Fills the color gaps caused by applying a point reduction.

Tile size

Enter the size of the rectangle for the background fill.

Source image:

Nga editori i fotografisë...

Pikë fotografi

Preview of the converted image. Click Preview to generate the vectorized image.

Progresi

Azhurimi në proces

Shikim paraprak

Previews the converted image without applying the changes.
