Snap Point/Line

Inserts a snap point or snap line (also known as guide) that you can use to quickly align objects. Snap points and snap lines do not appear in printed output.

To access this command...

Choose Insert - Insert Snap Point/Line (LibreOffice Draw only)

Open a context menu and choose Insert Snap Point/Line


tip

You can drag a snap line from the rulers and drop them on the page. To delete a snap line, drag it back to the ruler.


Draw or move an object near a snap point or snap line to snap it in place.

To set the snap range, choose in the Options dialog box.

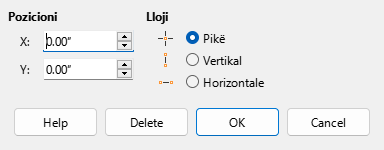

Snap points dialog

Pozicion

Sets the position of a selected snap point or line relative to the top left corner of the page.

note

You can also drag a snap point or snap line to a new position.


Boshti X

Enter the amount of space you want between the snap point or line and the left edge of the page.

Boshti Y

Enter the amount of space you want between the snap point or line and the top edge of the page.

Tipi

Specified the type of snap object you want to insert.

Pikë

Inserts a snap point.

Vertikal

Inserts a vertical snap line.

Horizontal

Inserts a horizontal snap line.
