Working With Layers

Drawings in LibreOffice Draw support layers.

Selecting a layer

To select a layer, click the name tab of the layer at the bottom of the workspace.

팁 아이콘

To edit the properties of a layer, double-click a layer tab.


Hiding layers

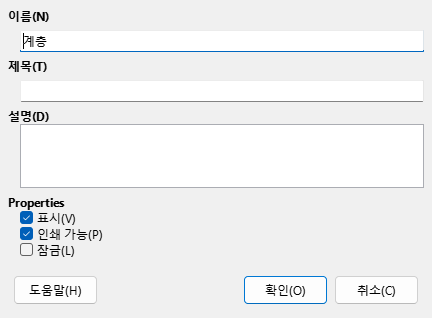

  1. Select a layer, and then choose Format - Layer.

  2. In the Properties area, clear the Visible check box.

  3. Click OK.

In the name tab of the layer, the text color of the name changes to blue.

팁 아이콘

You can make a layer visible or invisible by clicking on its tab while holding down the Shift key.


Showing hidden layers

  1. Select a hidden layer, and then choose Format - Layer.

  2. In the Properties area, select the Visible check box.

  3. Click OK.

Locking layers

  1. Select a layer, and then choose Format - Layer.

  2. In the Properties area, select the Locked check box.

  3. Click OK.

You cannot edit objects on a locked layer.

Unlocking layers

  1. Select a locked layer, and then choose Format - Layer.

  2. In the Properties area, clear the Locked check box.

  3. Click OK.
