Í marghyrning

Converts the selected object to a polygon (a closed object bounded by straight lines). The appearance of the object does not change. If you want, you can right-click and choose Edit Points to view the changes.

Til að nálgast þessa skipun...

Choose Shape - Convert - To Polygon (LibreOffice Draw only)

Open the context menu of a selected object and choose Convert - To Polygon


Converting Bitmap Images into Vector Graphics

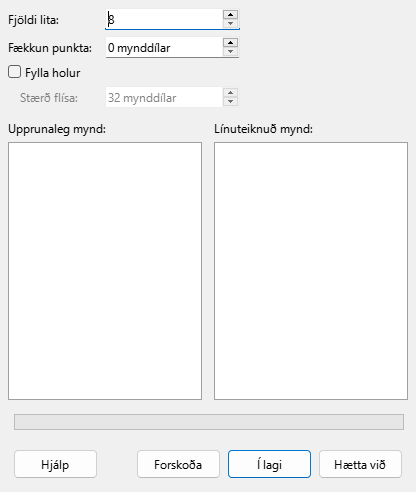

To Polygon dialog

Umbreyta í marghyrning

The following options are required to convert a bitmap image to a polygon. The converted image is actually a collection of smaller polygons filled with color.

Stillingar

Set the conversion options for the image.

Fjöldi lita:

Enter the number of colors to be displayed in the converted image. LibreOffice generates a polygon for each occurrence of a color in the image.

Fækkun punkta

Removes color polygons that are smaller than the pixel value you enter.

Fylla holur

Fills the color gaps caused by applying a point reduction.

Reitastærð

Enter the size of the rectangle for the background fill.

Upprunaleg mynd:

Forskoðun upprunalegu myndarinnar.

Línuteiknuð mynd:

Preview of the converted image. Click Preview to generate the vectorized image.

Framvinda

Displays the conversion progress.

Forskoðun

Previews the converted image without applying the changes.
