To Polygon

Converts the selected object to a polygon (a closed object bounded by straight lines). The appearance of the object does not change. If you want, you can right-click and choose Edit Points to view the changes.

To access this command...

Choose Shape - Convert - To Polygon (LibreOffice Draw only)

Open the context menu of a selected object and choose Convert - To Polygon


Converting Bitmap Images into Vector Graphics

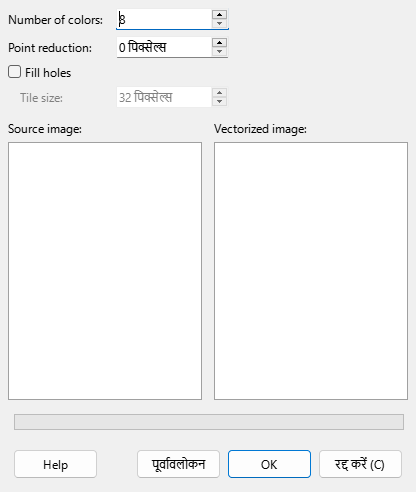

To Polygon dialog

बहुभुज में रूपान्तरित करें

The following options are required to convert a bitmap image to a polygon. The converted image is actually a collection of smaller polygons filled with color.

विन्यास

छवि के लिए रूपांतरण विकल्पों को सेट करें.

रंगों की संख्या:

Enter the number of colors to be displayed in the converted image. LibreOffice generates a polygon for each occurrence of a color in the image.

पॉइन्ट कम किया जाना

Removes color polygons that are smaller than the pixel value you enter.

छेद भरें

Fills the color gaps caused by applying a point reduction.

टाइल आकार

Enter the size of the rectangle for the background fill.

Source image:

मूल छवि का पूर्वावलोकन

वेक्टराइज्ड चित्र:

Preview of the converted image. Click Preview to generate the vectorized image.

प्रगति

रूपान्तरण की प्रगति दिखाता है...

पूर्वावलोकन

Previews the converted image without applying the changes.
