To Polygon

Converts the selected object to a polygon (a closed object bounded by straight lines). The appearance of the object does not change. If you want, you can right-click and choose Edit Points to view the changes.

כדי לגשת לפקודה הזאת…

Choose Shape - Convert - To Polygon (LibreOffice Draw only)

Open the context menu of a selected object and choose \<emph\>Convert - To Polygon\</emph\>

Converting Bitmap Images into Vector Graphics

Convert to Polygon

The following options are required to convert a bitmap image to a polygon. The converted image is actually a collection of smaller polygons filled with color.

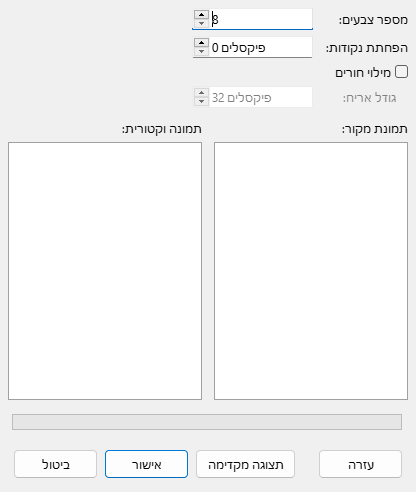

Set the conversion options for the image.

Number of colors:

Enter the number of colors to be displayed in the converted image. LibreOffice generates a polygon for each occurrence of a color in the image.

Point reduction

Removes color polygons that are smaller than the pixel value you enter.

Fill holes

Fills the color gaps caused by applying a point reduction.

Tile size

Enter the size of the rectangle for the background fill.

Source image:

Preview of the original image.

Vectorized image:

Preview of the converted image. Click \<emph\>Preview\</emph\> to generate the vectorized image.


Displays the conversion progress.


Previews the converted image without applying the changes.
