Selecting a new color

LibreOffice lets you define custom colors using a two-dimensional graphic and numerical gradient chart of the Pick a Color dialog.

Para acceder a esta orde...

Escolla Formato - Área - Área, prema o botón Cor e prema no botón Escoller.

Prema no botón Diálogo de cores na lapela Iluminación do diálogo Efectos 3D.

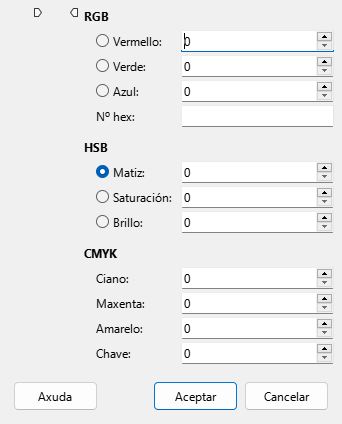

The Pick a Color Window

A xanela Escolla unha cor

The Pick a Color dialog consists of four main areas.

The radio buttons select the color component of the color. This color component can be expressed in either RGB (Red, Green, Blue) or HSB (Hue, Saturation, Brightness) color models. The CMYK color model is not selectable and is provided only to ease the input of color values using CMYK notation.
The spin buttons are for entering the numerical value of the color component.
With the vertical color component slider you can modify the value of each component of the color. With the large colored square you can select the color component approximately.
The horizontal bottom color bar shows the current color and the new color, side by side.

Prema na área colorida grande da esquerda para seleccionar unha cor nova. Mediante este selector pode modificar dous compoñentes da cor tal e como se representan nos modelos de cor RGB e HSB. Teña en conta que estes son os compoñentes non seleccionados cos botóns de radio da parte dereita da caixa de diálogo.

In the right part of the bottom bar, you will see the original color from the parent tab, Colors.

In the left part of the bottom bar, the current result of your work in this dialog is visible.

LibreOffice só utiliza o modelo RGB para imprimir a cor. Os controis CMYK son fornecidos só para facilitar a entrada de valores de cor utilizando a anotación CMYK.

RGB

Vermello

Sets the Red component modifiable on the vertical color slider, and the Green and Blue components in the two-dimensional color picker field. Allowed values are 0 to 255.

Verde

Sets the Green component modifiable on the vertical color slider, and the Red and Blue components in the two-dimensional color picker field. Allowed values are 0 to 255.

Azul

Sets the Blue component modifiable on the vertical color slider, and the Green and Red components in the two-dimensional color picker field. Allowed values are 0 to 255.

Hex #

Displays and sets the color value in the RGB color model expressed as a hexadecimal number.

HSB

Matiz

Sets the Hue component modifiable on the vertical color slider, and the Saturation and Brightness components in the two-dimensional color picker field. Values are expressed in degrees from 0 to 359.

Saturación

Sets the Saturation component modifiable on the vertical color slider, and the Hue and Brightness components in the two-dimensional color picker field. Values are expressed in percent (0 to 100).

Brillo

Sets the Brightness component modifiable on the vertical color slider, and the Hue and Saturation components in the two-dimensional color picker field. Values are expressed in percent (0 to 100).

CMYK

Ciano

Set the Cyan color value as expressed in the CMYK color model.

Maxenta

Set the Magenta color value as expressed in the CMYK color model.

Amarelo

Set the Yellow color value as expressed in the CMYK color model.

Chave

Set the Black color value or key (black) as expressed in the CMYK color model.
