Pluranguligi

Converts the selected object to a polygon (a closed object bounded by straight lines). The appearance of the object does not change. If you want, you can right-click and choose Edit Points to view the changes.

Por atingi ĉi tiun komandon...

Choose Shape - Convert - To Polygon (LibreOffice Draw only)

Open the context menu of a selected object and choose Convert - To Polygon

Converting Bitmap Images into Vector Graphics

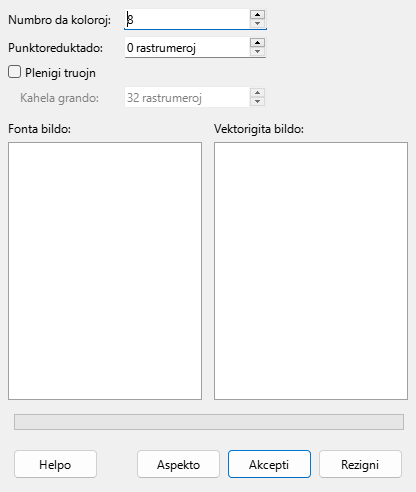

To Polygon dialog

Konverti al plurangulo

The following options are required to convert a bitmap image to a polygon. The converted image is actually a collection of smaller polygons filled with color.

Agordaro

Set the conversion options for the image.

Nombro de koloroj:

Enter the number of colors to be displayed in the converted image. LibreOffice generates a polygon for each occurrence of a color in the image.

Punktoreduktado

Removes color polygons that are smaller than the pixel value you enter.

Plenigi truojn

Fills the color gaps caused by applying a point reduction.

Kahela grando

Enter the size of the rectangle for the background fill.

Source image:

Preview of the original image.

Vektorigita bildo:

Preview of the converted image. Click Preview to generate the vectorized image.

Progreso

Displays the conversion progress.

Aspekto

Previews the converted image without applying the changes.
