Converts the selected object to a polygon (a closed object bounded by straight lines). The appearance of the object does not change. If you want, you can right-click and choose Edit Points to view the changes.

To access this command...

Choose Shape - Convert - To Polygon (LibreOffice Draw only)

Open the context menu of a selected object and choose Convert - To Polygon


Converting Bitmap Images into Vector Graphics

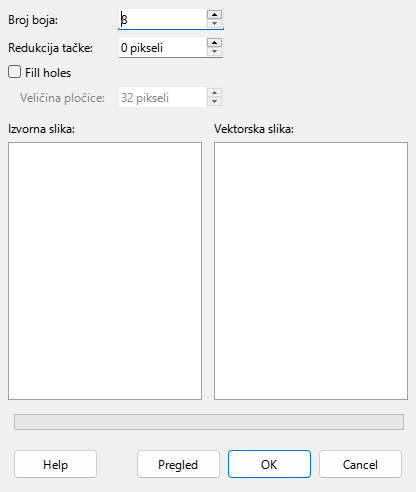

To Polygon dialog

Pretvori u poligon

The following options are required to convert a bitmap image to a polygon. The converted image is actually a collection of smaller polygons filled with color.

Postavke

Set the conversion options for the image.

Broj kopija

Enter the number of colors to be displayed in the converted image. LibreOffice generates a polygon for each occurrence of a color in the image.

Point reduction

Removes color polygons that are smaller than the pixel value you enter.

Fill holes

Fills the color gaps caused by applying a point reduction.

Tile size

Enter the size of the rectangle for the background fill.

Source image:

Preview of the original image.

Vectorized image:

Preview of the converted image. Click Preview to generate the vectorized image.

Napredak

Displays the conversion progress.

Pregled

Previews the converted image without applying the changes.
